BCZY Series Explosion-proof Movable Switchboards

BCZY Series Explosion-proof Movable Switchboards

SKU: BCZY Categories: , ,

Description

◆ Explosion protection to EN, IEC

◆ Can be used in Zone 1,2,21,22

Groups A, B, C, D

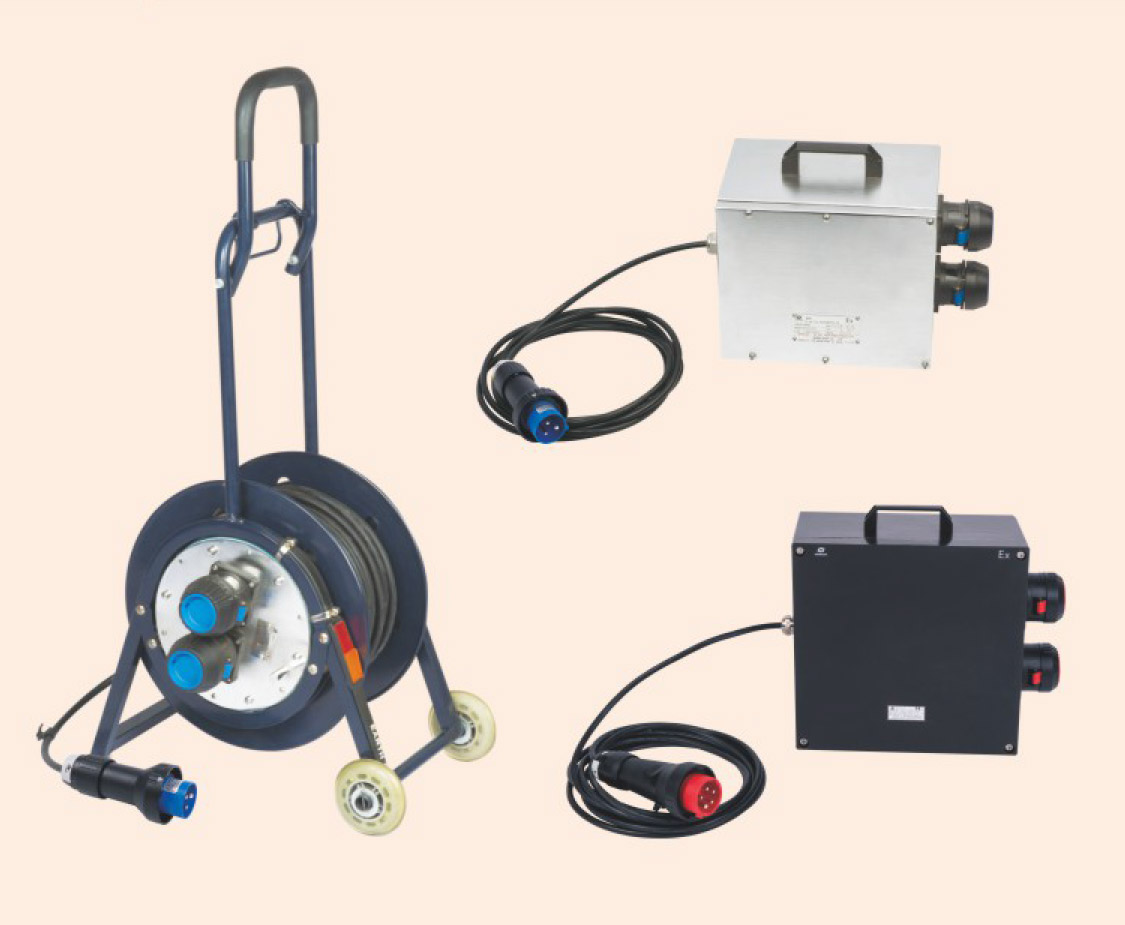

◆ Type A(portable type) and type B(push type)for option.

◆ The enclosure of type A(portable type):Stainless steel or GRP(glass fibre-reinforced polyester resin), the Max.transformer capacity of stainless steel product: 1600V A;the Max. transformer capacity of GRP product: 300V A

◆ Several kinds of voltage for option.

◆ Portable type is equipped with 5m cable; push type is equipped with 20m cable; also can be customized on

Material GRP(glass fibre-reinforced polyester resin)
Weight As per design
Dimensions As per design
Enclosure colour Black
Exposed fastener Stainless steel
Rated voltage 3P:200~250V AC, 5P:380~415V AC
Rated current 16A
Cable gland(optional) DQM-I is recommended.
