Description
◆Explosion protection to
EN,IEC
◆ Can be used in
Zone 1 and Zone 2

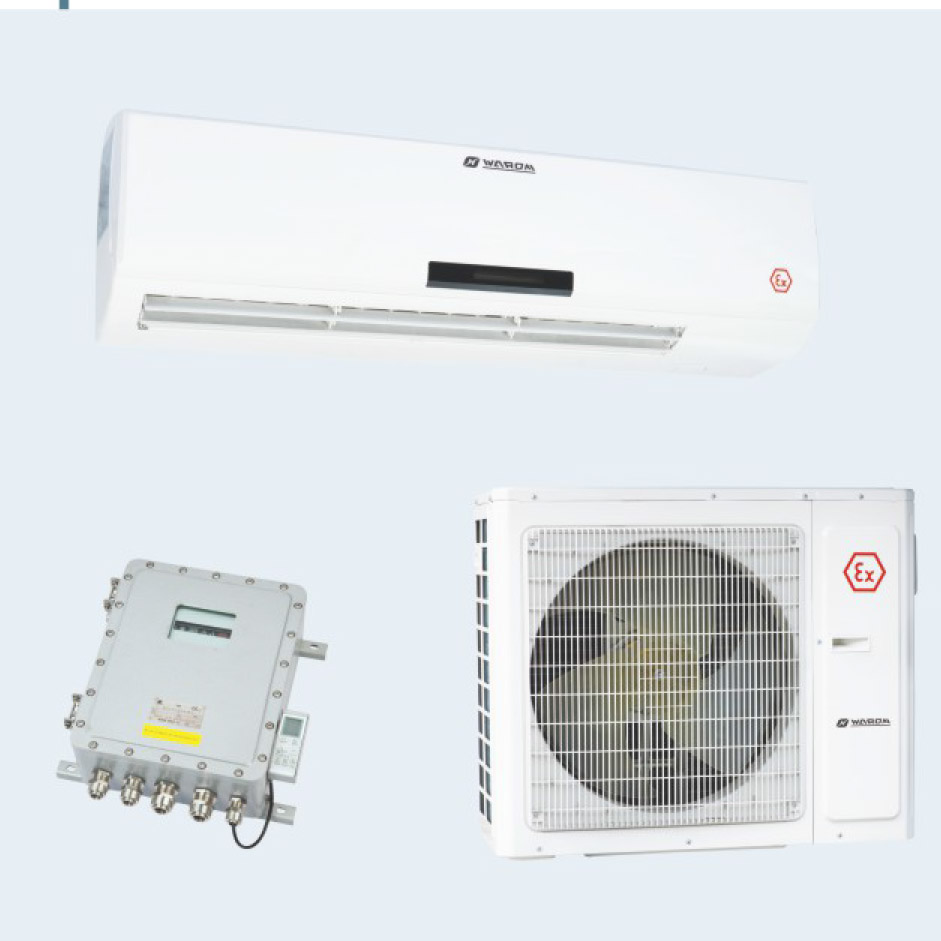

◆ For explosion-proof wall air conditioner, both cooling-only and cooling & heating products in T1, T2, and T3 are available, to meet different requirements of low, medium and high temperature zones in the world.
◆ Explosion-proof wall air conditioner is based on renowned brand,by taking explosion-proof measures to indoor and outdoor units. Measures to outdoor unit: by taking special technics and control, conduct explosion-proof treatment to internal control units, compressor, outdoor fan motor, protective system, heat-removal system, cooling system, etc.
| Type |
BKF-50/220 |
BKF-71/220 |
| Cooling capacity |
W |
5275 |
7066 |
| BTU |
18000* |
24000* |
| Rated voltage/Frequency (V/Hz) |
220~240/50 |
220~240/50 |
| Input power (P) |
2P |
3P |
| Cooling input power (W) |
2300/10.5 |
3100/14.9 |
| Application areas (m2) |
24~36 |
29~48 |
| Sound level (dB) |
Indoor unit |
43* |
44* |
| Outdoor unit |
54* |
55* |
| Outline dimensions (L x W x H) (mm) |
Indoor unit |
960 x 385 x 245* |
1100 x 358 x 294* |
| Outdoor unit |
910 x 690 x 390* |
910 x 690 x 390* |
| Control box |
420 x 350 x 178 |
420 x 350 x 178 |
| Weight (kg) |
Indoor unit |
21* |
25* |
| Outdoor unit |
62* |
65* |
| Control box |
21 |
21 |
| Note: The above technical data is for normally supplied products of T3 (-7℃~+52℃) temperature class, voltage is
220~240V AC/50Hz, other voltages are available, such as 220~240V AC/60Hz, please specify when ordering.
The above data is only for reference, the actual product shall prevail. |
|
|
|
|
|
|
|
|
|
|
|
|
