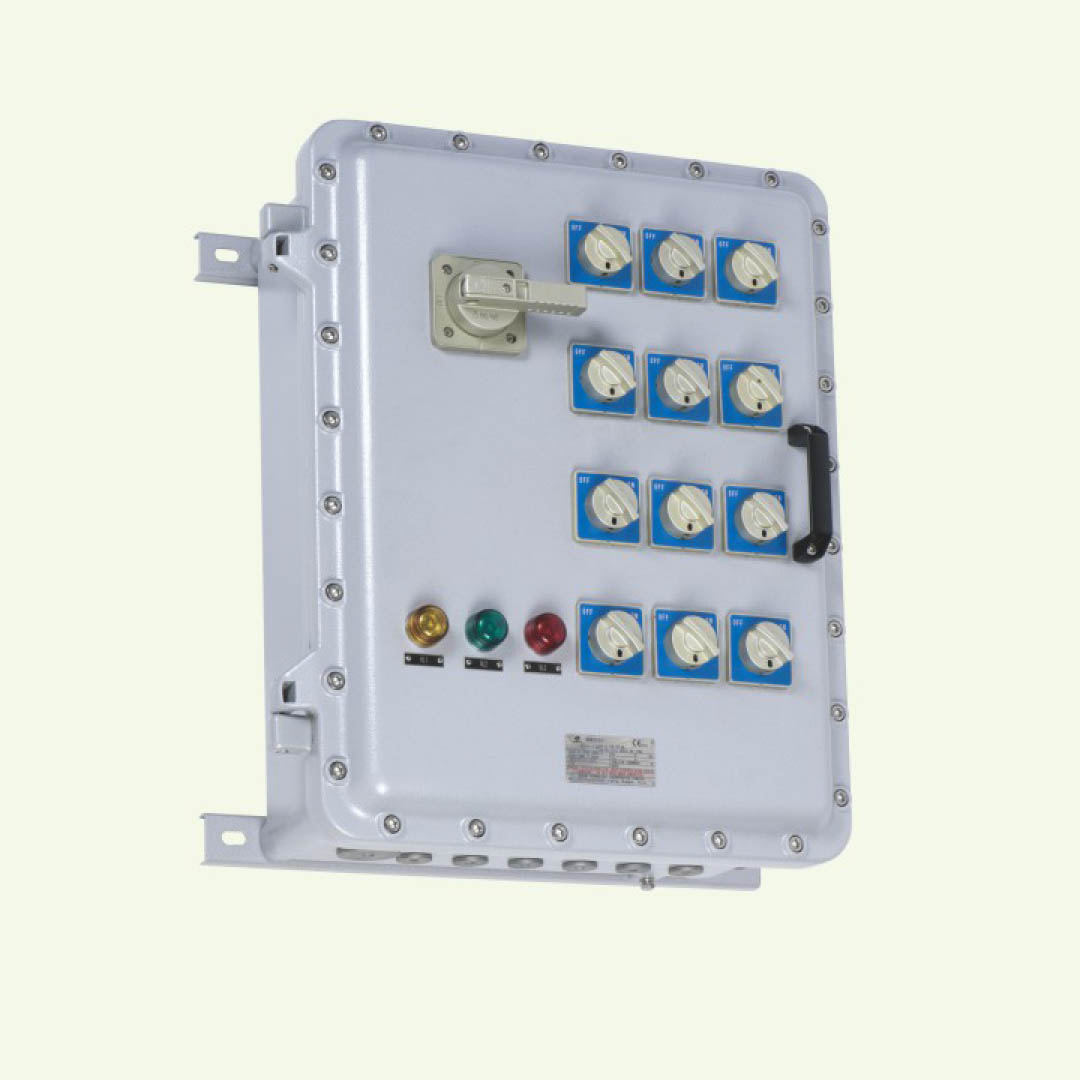

BXM(D)81 Series Explosion-proof illumination Distribution Boxes

Description

◆ Explosion Protection to EN,IEC

◆ Can be used in

Zone 1,2,21,22

Class I, Zone 1,2

Division 1, Groups C, D

◆ Flameproof enclosure (Ex d IIB)

◆ Main switch and branch switch are operated with external rotary actuator.

◆ Internal wiring to the terminal is finished.

◆ International brand of terminal blocks and components.

◆ Copper-free Aluminium Alloy (carbon steel), powder coated surface, or stainless steel.

◆ Special requirements on request.

Material Copper-free Aluminium Alloy(carbon steel), powder coated surface, or Stainless steel Color Window grey (RAL7040) Dimensions As per design Rated voltage Max. 690V AC 50/60Hz Rated current Max.100A Internal&external earthing M6/M8 Cable entries As per design Cable gland (optional) DQM-II (Ex d)
